planning模块-路径边界障碍物

DecidePathBounds函数

InitPathBoundary函数

bool PathBoundsDeciderUtil::InitPathBoundary(
    const ReferenceLineInfo& reference_line_info,
    PathBoundary* const path_bound, SLState init_sl_state)

reference_line_info:参考线信息
path_bound:路径边界(出参)
init_sl_state:当前自车基于参考线的(s, s', s''), (l, l', l'')

init_sl_state_ = reference_line.ToFrenetFrame(planning_start_point);

init_sl_state:上一篇中planning模块-笛卡尔坐标转Frenet坐标获取到的规划起点的l, {l}', {l}'', s, \dot{s}, \ddot{s}

path_bound->set_delta_s(FLAGS_path_bounds_decider_resolution);

设置路径边界采样步长,默认是0.5m

  const auto& vehicle_config =
      common::VehicleConfigHelper::Instance()->GetConfig();
  const double ego_front_to_center =
      vehicle_config.vehicle_param().front_edge_to_center();

从modules/common/data/vehicle_param.pb.txt配置文件中,获取车辆最前边缘到后轴中心的距离

const auto& reference_line_towing_l =
      reference_line_info.reference_line_towing_l();

默认为0,表示理想状态下参考线基于车道中心线的横向偏移

  for (double curr_s = init_sl_state.first[0];
       curr_s < std::fmin(init_sl_state.first[0] +
                              std::fmax(FLAGS_path_bounds_horizon,
                                        reference_line_info.GetCruiseSpeed() *
                                            FLAGS_trajectory_time_length),
                          reference_line.Length() - ego_front_to_center);
       curr_s += FLAGS_path_bounds_decider_resolution) {
    path_bound->emplace_back(curr_s, std::numeric_limits<double>::lowest(),
                             std::numeric_limits<double>::max());
    if (index < reference_line_towing_l.size()) {
      path_bound->back().towing_l = reference_line_towing_l.at(index);
    }
    index++;
  }

curr_s:路径边界采样起点
FLAGS_path_bounds_horizon:路径边界采样总长度,默认是100m
reference_line_info.GetCruiseSpeed() * FLAGS_trajectory_time_length:
动态路径边界采样总长度,FLAGS_trajectory_time_length默认8s
reference_line.Length() - ego_front_to_center:根据参考线长度确定的路径边界采样总长度

FLAGS_path_bounds_decider_resolution:循环步长

path_bound->emplace_back(curr_s, std::numeric_limits<double>::lowest(),
                             std::numeric_limits<double>::max());

根据上面步长对路径边界进行采样,初始化路径边界点可通行范围为[lowest(), max()]

GetBoundaryFromSelfLane函数

double adc_lane_width =
      GetADCLaneWidth(reference_line, init_sl_state.first[0]);

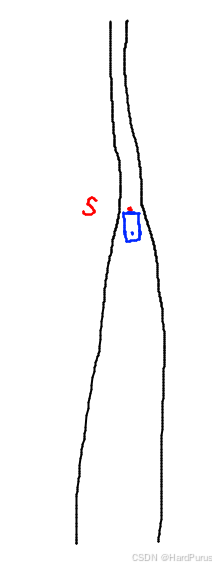

根据自车所对应的参考点的s值,从map中获取到此位置的车道宽度

double offset_to_map = 0.0;
    reference_line.GetOffsetToMap(curr_s, &offset_to_map);

通过当前s值获取到当前位置平滑参考线与粗糙参考线的横向偏移,横向偏移是在GenerateRefPointProfile函数中得到的

    double curr_left_bound = 0.0;
    double curr_right_bound = 0.0;
    curr_left_bound = curr_lane_left_width - offset_to_map;
    curr_right_bound = -curr_lane_right_width - offset_to_map;

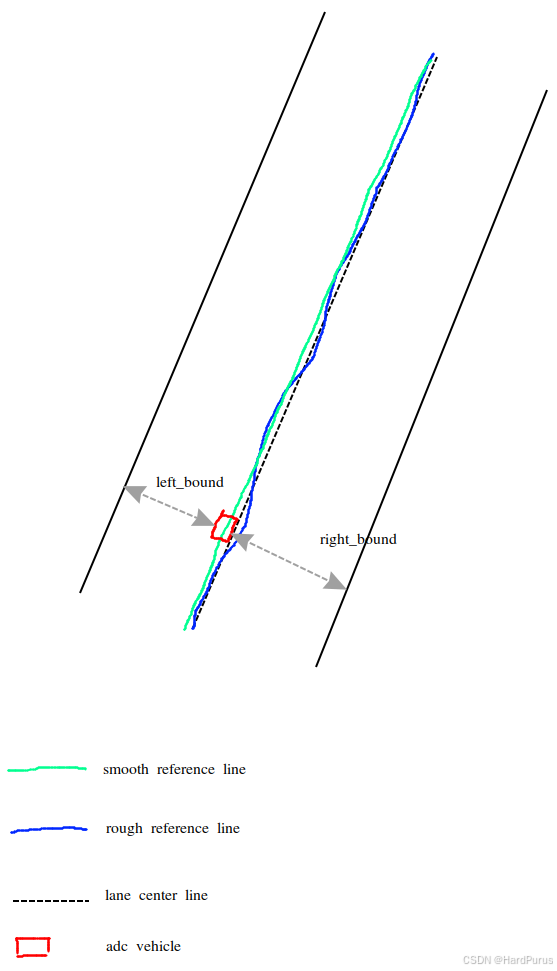

curr_left_bound/curr_right_bound:获取到的是以平滑后的参考线为中心线的左右路径边界

UpdateLeftPathBoundaryWithBuffer函数

double adc_half_width =
      VehicleConfigHelper::GetConfig().vehicle_param().width() / 2.0;

从modules/common/data/vehicle_param.pb.txt配置中获取车辆宽度的一半

path_bound->emplace_back(curr_s, std::numeric_limits<double>::lowest(),
                             std::numeric_limits<double>::max());

在上面介绍中,路径边界都被初始化为了[lowest(), max()]

  PathBoundPoint new_point = *bound_point;
  if (new_point.l_upper.l > left_bound) {
    new_point.l_upper.l = left_bound;
    new_point.l_upper.type = left_type;
    new_point.l_upper.id = left_id;
  }

上面逻辑,会把路径边界点的左边界更新为以平滑后的参考线为中心线的左边界减去自车宽度的一半得到[lowest(), left_bound]

UpdateRightPathBoundaryWithBuffer函数同理
会把路径边界点右边界更新为以平滑后的参考线为中心线的右边界加上自车宽度的一半得到[right_bound, left_bound].

left_bound = left_bound - adc_half_width;
right_bound = right_bound + adc_half_width;

在Frenet坐标系下,沿着车辆行驶的方向为s方向,垂直于s的方向为l方向,并且l方向是参考线左侧为正值,参考线右侧为负值.
所以左边界left_bound是正数要减去adc_half_width才是左侧车辆空余的空间
右边界right_bound是负数要加上adc_half_width才是右侧车辆空余的空间

TrimPathBounds函数

如果发现路径边界点对应的可行驶范围,车辆无法通过,就会把这个路径边界点及之后的路径边界点都裁剪掉.

ExtendBoundaryByADC函数
如果modules/planning/tasks/lane_follow_path/conf/default_conf.pb.txt文件中的
is_extend_lane_bounds_to_include_adc配置为true表示保证自车一定在路径边界的可行域内.
并且当前不是在借道场景ExtendBoundaryByADC函数就会被调用

bool PathBoundsDeciderUtil::ExtendBoundaryByADC(
    const ReferenceLineInfo& reference_line_info, const SLState& init_sl_state,
    const double extend_buffer, PathBoundary* const path_bound)

extend_buffer:是modules/planning/tasks/lane_follow_path/conf/default_conf.pb.txt文件中的配置,默认为0.2m

double ADC_speed_buffer = (init_sl_state.second[1] > 0 ? 1.0 : -1.0) *
                            init_sl_state.second[1] * init_sl_state.second[1] /
                            kMaxLateralAccelerations / 2.0;

最大横向加速度下的横向距离

if (left_bound_adc > (*path_bound)[i].l_upper.l) {
      (*path_bound)[i].l_upper.l =
          std::max(std::min(left_bound_adc, left_bound_road),
                   (*path_bound)[i].l_upper.l);
      (*path_bound)[i].l_upper.type = BoundType::ADC;
      (*path_bound)[i].l_upper.id = "adc";
    }
    if (right_bound_adc < (*path_bound)[i].l_lower.l) {
      (*path_bound)[i].l_lower.l =
          std::min(std::max(right_bound_adc, right_bound_road),
                   (*path_bound)[i].l_lower.l);
      (*path_bound)[i].l_lower.type = BoundType::ADC;
      (*path_bound)[i].l_lower.id = "adc";
    }

只针对每一帧的规划起点进行扩展左右边界

auto indexed_obstacles = reference_line_info_->path_decision()->obstacles();

这里需要先介绍一下reference_line_info信息的构建函数
modules/planning/planning_base/common/frame.cc

CreateReferenceLineInfo函数

忽略的逻辑,我觉得如果认真看,是可以理解的,所以就不介绍了.

  for (auto iter = reference_line_info_.begin();
       iter != reference_line_info_.end();) {
    if (!iter->Init(obstacles(), target_speed)) {
      reference_line_info_.erase(iter++);
    } else {
      has_valid_reference_line = true;
      iter->set_index(ref_line_index);
      AINFO << "get referenceline: index: " << iter->index()
            << ", id: " << iter->id() << ", key: " << iter->key();
      ref_line_index++;
      iter++;
    }
  }

这里要介绍一下obstacles()函数,在Frame类中有两处可以向obstacles_变量中加入障碍物
第一处

void Frame::AddObstacle(const Obstacle &obstacle) {
  obstacles_.Add(obstacle.Id(), obstacle);
}

第二处

const Obstacle *Frame::CreateStaticVirtualObstacle(const std::string &id,
                                                   const Box2d &box) {
  const auto *object = obstacles_.Find(id);
  if (object) {
    AWARN << "obstacle " << id << " already exist.";
    return object;
  }
  auto *ptr =
      obstacles_.Add(id, *Obstacle::CreateStaticVirtualObstacles(id, box));
  if (!ptr) {
    AERROR << "Failed to create virtual obstacle " << id;
  }
  return ptr;
}

第一处障碍物的来源是prediction,prediction的来源是perception
第二处障碍物是根据需求可以通过规则的配置文件进行配置的,比如你想在某个位置停下来,那么就可以通过配置设置虚拟障碍物来实现
本专栏目的是快速入门pnc算法,所以只介绍来自perception的障碍物.
modules/planning/planning_base/common/frame.cc

Status Frame::InitFrameData(
    const common::VehicleStateProvider *vehicle_state_provider,
    const EgoInfo *ego_info) {
...
  for (auto &ptr :
       Obstacle::CreateObstacles(*local_view_.prediction_obstacles)) {
    AddObstacle(*ptr);
  }

CreateObstacles函数
IsValidPerceptionObstacle函数对感知障碍物数据做合法性校验,主要是验证障碍物的长宽高,在x方向上的速度,在y方向上的速度,障碍物几何图形各点的合理性
然后会根据障碍物是否有预测轨迹线并通过障碍物id来区分,构建Obstacle
然后通过Frame::AddObstacle函数将障碍物添加到obstacles_中.

现在,在回到Frame::CreateReferenceLineInfo函数

iter->Init(obstacles(), target_speed)

obstacles()就是从Frame类obstacles_中获取到所有的障碍物,然后在ReferenceLineInfo::Init函数中通过AddObstacles函数调用AddObstacle函数将障碍物信息传入到ReferenceLineInfo::path_decision_中

ReferenceLineInfo::AddObstacle函数

Obstacle* ReferenceLineInfo::AddObstacle(const Obstacle* obstacle) {
...
auto* mutable_obstacle = path_decision_.AddObstacle(*obstacle);
SLBoundary perception_sl;
  if (!reference_line_.GetSLBoundary(obstacle->PerceptionPolygon(),
                                     &perception_sl)) {
    AERROR << "Failed to get sl boundary for obstacle: " << obstacle->Id();
    return mutable_obstacle;
  }

ReferenceLine::GetSLBoundary函数
corners:规划模块只用障碍物在地面上的投影,所以角点的个数一般是4个,如果是异形障碍物可能是6个,7个或更多.

int first_index = 0;
    double min_dist = std::numeric_limits<double>::max();
    for (int i = 0; i < obs_corners.size(); ++i) {
      double ego_dist = ego_position_.DistanceTo(obs_corners[i]);
      if (ego_dist < min_dist) {
        min_dist = ego_dist;
        first_index = i;
      }
    }

获取到离自车最近的角点

    std::rotate(obs_corners.begin(), obs_corners.begin() + first_index,
                obs_corners.end());
    const common::math::Vec2d& first_point = obs_corners.front();
    ADEBUG << "first_point: " << std::setprecision(9) << first_point.x() << ", "
           << first_point.y();
    SLPoint first_sl_point;
    if (!XYToSL(first_point, &first_sl_point, warm_start_s)) {
      AERROR << "Failed to get projection for point: "
             << first_point.DebugString() << " on reference line.";
      return false;
    }
    sl_corners.push_back(std::move(first_sl_point));
  }

根据平滑参考线获取离自车最近角点的横纵距离

double hueristic_start_s = 0.0;
  double hueristic_end_s = 0.0;
  double distance = 0.0;
  SLPoint sl_point;
  for (size_t i = 1; i < obs_corners.size(); ++i) {
    distance = obs_corners[i].DistanceTo(obs_corners[i - 1]);
    hueristic_start_s = sl_corners.back().s() - 2.0 * distance;
    hueristic_end_s = sl_corners.back().s() + 2.0 * distance;
    if (!XYToSL(obs_corners[i], &sl_point, hueristic_start_s,
                hueristic_end_s)) {
      AERROR << "Failed to get projection for point: "
             << obs_corners[i].DebugString() << " on reference line.";
      return false;
    }
    sl_corners.push_back(std::move(sl_point));
  }

上面逻辑主要是根据已经计算了s的角点,再结合两个角点之间的distance,可以限定出来一个搜索范围,这样在求其它角点的s,l时,不用搜索整条平滑参考线,而是只在这个限定范围内做投影计算s,l就可以了,减少计算量.

这样障碍物所有投影点我们认为是4个投影点的s,l都已经计算出来了,存到了sl_corners中 .

  for (size_t i = 0; i < obs_corners.size(); ++i) {
    auto index0 = i;
    auto index1 = (i + 1) % obs_corners.size();
    const auto& p0 = obs_corners[index0];
    const auto& p1 = obs_corners[index1];

    const auto p_mid = (p0 + p1) * 0.5;
    distance = obs_corners[index0].DistanceTo(p_mid);
    hueristic_start_s = sl_corners[index0].s() - 2.0 * distance;
    hueristic_end_s = sl_corners[index0].s() + 2.0 * distance;
    SLPoint sl_point_mid;
    if (!XYToSL(p_mid, &sl_point_mid, hueristic_start_s, hueristic_end_s)) {
      AERROR << "Failed to get projection for point: " << p_mid.DebugString()
             << " on reference line.";
      return false;
    }

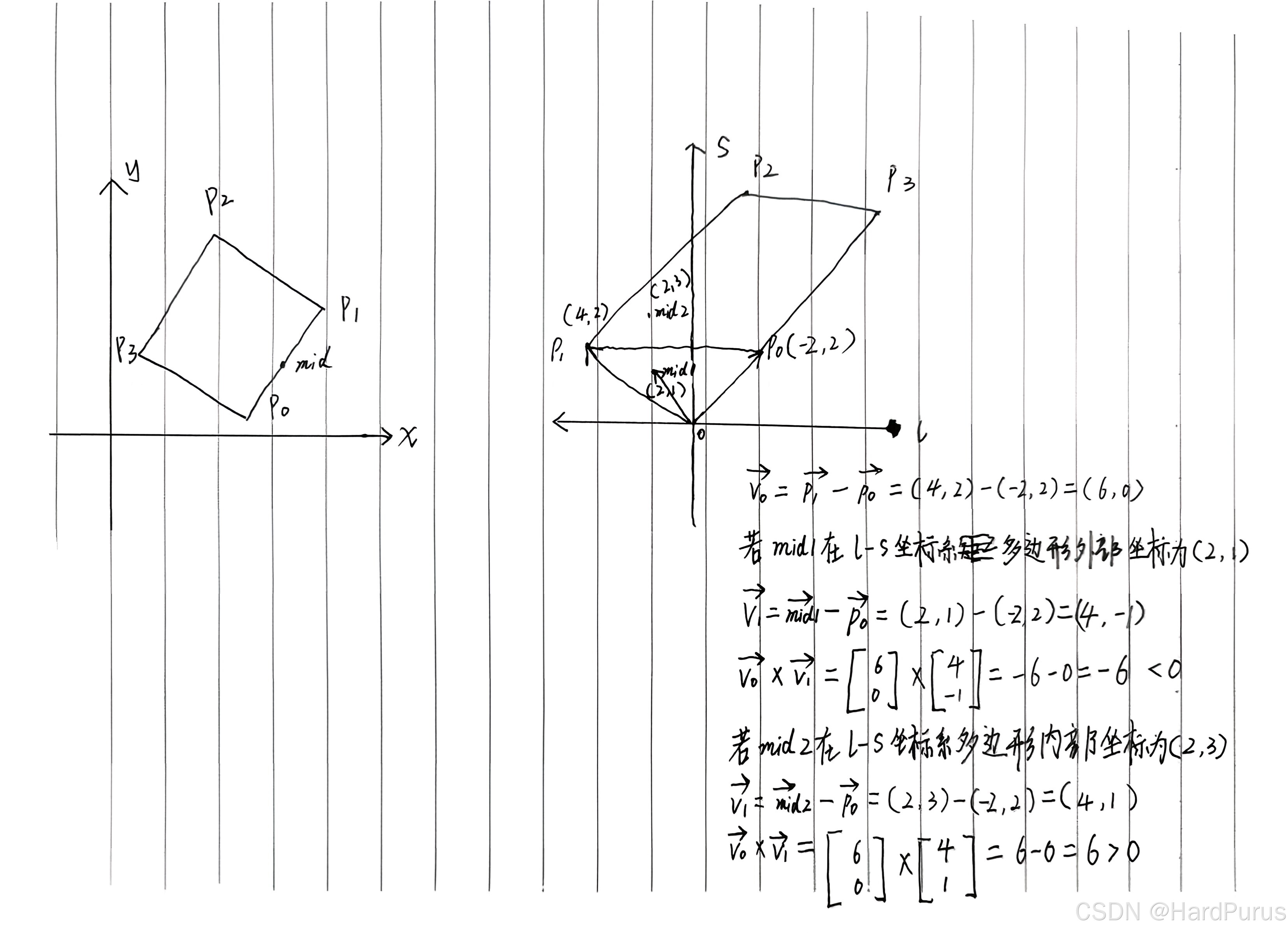

    Vec2d v0(sl_corners[index1].s() - sl_corners[index0].s(),
             sl_corners[index1].l() - sl_corners[index0].l());

    Vec2d v1(sl_point_mid.s() - sl_corners[index0].s(),
             sl_point_mid.l() - sl_corners[index0].l());

    *sl_boundary->add_boundary_point() = sl_corners[index0];

    // sl_point is outside of polygon; add to the vertex list
    if (v0.CrossProd(v1) < 0.0) {
      *sl_boundary->add_boundary_point() = sl_point_mid;
    }
  }

  for (const auto& sl_point : sl_boundary->boundary_point()) {
    start_s = std::fmin(start_s, sl_point.s());
    end_s = std::fmax(end_s, sl_point.s());
    start_l = std::fmin(start_l, sl_point.l());
    end_l = std::fmax(end_l, sl_point.l());
  }

  sl_boundary->set_start_s(start_s);
  sl_boundary->set_end_s(end_s);
  sl_boundary->set_start_l(start_l);
  sl_boundary->set_end_l(end_l);

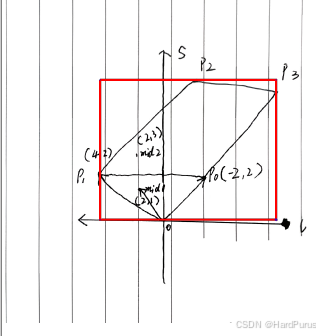

最后将障碍物的投影范围设置如下图AABB的矩形框形式

IsIrrelevantObstacle函数
判断一个障碍物,是否和当前参考线有关系,如果无关就不需要作为决策点,路径规划也不需要考虑此障碍物

AddLateralDecision函数
如果障碍物和当前参考线有关,则添加新的决策

bool PathDecision::AddLateralDecision(const std::string &tag,
                                      const std::string &object_id,
                                      const ObjectDecisionType &decision)

ObjectDecisionType类型如下:
核心设计原则
同一个障碍物：
可以同时有：
一个纵向决策
一个横向决策
但：
每个方向只有一个决策最终生效

message ObjectDecisionType {
  oneof object_tag {
    ObjectIgnore ignore = 1;
    ObjectStop stop = 2;
    ObjectFollow follow = 3;
    ObjectYield yield = 4;
    ObjectOvertake overtake = 5;
    ObjectNudge nudge = 6;
    ObjectAvoid avoid = 7;
    ObjectSidePass side_pass = 8;
  }
}

类型	含义	本质	决策类型
`ignore`	忽略	对规划无影响	横向决策
`stop`	停车	纵向强制约束	纵向决策
`follow`	跟随	纵向控制（ACC）	纵向决策
`yield`	让行	减速让路	纵向决策
`overtake`	超车	纵向 + 横向	纵向决策
`nudge`	轻微横向避让	横向	横向决策
`avoid`	避让	强避让（较少用）
`side_pass`	侧向绕行	复杂横向

MergeLateralDecision函数

ObjectDecisionType Obstacle::MergeLateralDecision(
    const ObjectDecisionType& lhs, const ObjectDecisionType& rhs) {
  if (lhs.object_tag_case() == ObjectDecisionType::OBJECT_TAG_NOT_SET) {
    return rhs;
  }
  if (rhs.object_tag_case() == ObjectDecisionType::OBJECT_TAG_NOT_SET) {
    return lhs;
  }

lhs:之前的决策
rhs:新的决策

const auto lhs_val =
      FindOrDie(s_lateral_decision_safety_sorter_, lhs.object_tag_case());
  const auto rhs_val =
      FindOrDie(s_lateral_decision_safety_sorter_, rhs.object_tag_case());

Obstacle::s_lateral_decision_safety_sorter_ = {
        {ObjectDecisionType::kIgnore, 0}, {ObjectDecisionType::kNudge, 100}};

s_lateral_decision_safety_sorter_:是决策安全等级,数值越大决策越强 / 越保守 / 越安全,这里apollo认为横向决策只用到了两个一个是nudge,一个是ignore.nudge就是如果自车前方有静止障碍物,如果条件满足,自车会稍微nudge一下,然后绕过障碍物,ignore就相当于认为前方静止障碍物不影响通行,就当它不存在.

else if (lhs.has_nudge()) {
      DCHECK(lhs.nudge().type() == rhs.nudge().type())
          << "could not merge left nudge and right nudge";
      return std::fabs(lhs.nudge().distance_l()) >
                     std::fabs(rhs.nudge().distance_l())
                 ? lhs
                 : rhs;
    }

message ObjectNudge {
  enum Type {
    LEFT_NUDGE = 1;   // drive from the left side to nudge a static obstacle
    RIGHT_NUDGE = 2;  // drive from the right side to nudge a static obstacle
    DYNAMIC_LEFT_NUDGE = 3;   // drive from the left side to nudge a dynamic obstacle
    DYNAMIC_RIGHT_NUDGE = 4;  // drive from the right side to nudge a dynamic obstacle
  };
  optional Type type = 1;
  // minimum lateral distance in meters. positive if type = LEFT_NUDGE
  // negative if type = RIGHT_NUDGE
  optional double distance_l = 2;
}

当新旧决策都是nudge时,并且nudge类型也相同时,比较nudge距离选择nudge大的决策,nudge距离,就是绕的距离.nudge会在介绍PATH_DECIDER时介绍.
最后MergeLateralDecision返回要执行的横向决策

AddLongitudinalDecision函数
和AddLateralDecision同理,是添加纵向决策
纵向决策安全等级:

    Obstacle::s_longitudinal_decision_safety_sorter_ = {
        {ObjectDecisionType::kIgnore, 0},
        {ObjectDecisionType::kOvertake, 100},
        {ObjectDecisionType::kFollow, 300},
        {ObjectDecisionType::kYield, 400},
        {ObjectDecisionType::kStop, 500}};
